MIL-PRF-27404D
APPENDIX B
A
-
GN2
J
-
Connector (Swagelok SS-400-7-2 or equivalent)
B
-
Water aspirator (glass or polyethylene)
K
-
Valve (Swagelok SS-ORM2 or equivalent}
Rod (PTFE or polyethylene, 1/4 inch OD & a 1/16 OD x
C
-
Connector (polyethylene, separable)
L
-
Syringe (100 mL glass with an 8 12 in PTFE needle).
Gauge (stainless steel, absolute pressure, 0 - 760 mmHg
D
-
M
-
range)
0.025 in wall tube inserted}
E
-
Adapter (Swagelok SS-8-TA-7-4 or equivalent)
N
-
Reducer (Swagelok SS-400-R-8 or equivalent)
F
-
Union Tee (Swagelok SS-810-3 or equivalent; 2 ea.)
O
-
Beaker (glass, 1000 mL capacity}
G
-
Pipette (100 mL, volumetric, borosilicate glass)
P
-
Flask (25 mL volumetric, borosilicate glass)
Joints (borosilicate glass, spherical, 12/5, ball, socket
H
-
Q
-
Hotplate (adjustable heat range}
and clamp)
PTFE Ferrules (Swagelok T-814-1, T-813-1, T-404-1, T-
I
-
403-1, or equivalent)
NOTE: All fittings, stainless steel, Swagelok or equivalent.

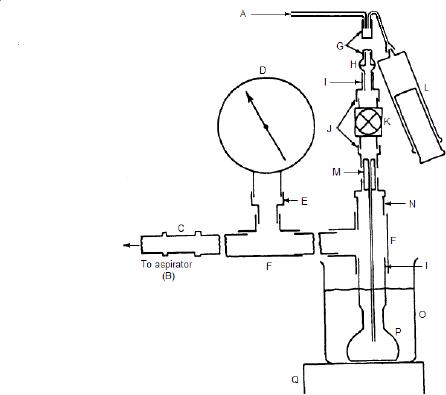

FIGURE B-1. NVR apparatus
10
